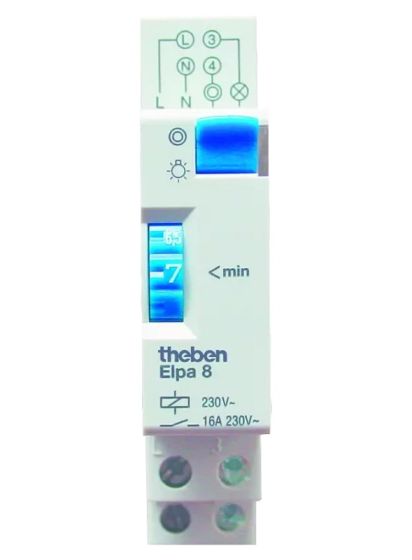

Trappenhuisautomaat - 230V 1-7M 1NO 16A
THEBEN
No longer available
SKU
46922
Not available
This article is no longer available. Would you like an alternative? Click here to send us a message with the desired number of pieces.Estimated delivery: 1 week
Add to Wish List Specifications
| Part number | 4003468010068 |
|---|---|
| Reference | ELPA8 |
| Brand | Theben |
| Location use | Interior |
| Fixation location | DIN-rail |
| Mounting device | DIN rail |
| Shape | Rectangular |
| Type in brand | Switches |
| Voltage/current | 230V |
| Operating temperature | -10°C to +50°C |
| IP rating IP stands for "International Potection. The first digit indicates dust density. The second indicates water density. However, if a third digit is included, it refers to the impact resistance or 'I K' value. | IP20 |
| Insulation class | II |
| Dimensions | See picture |
| Width in mm | 17,5 |
| Height in mm | 83,5 |
| Distance from wall in mm | 64 |
| More technical details | See technical data sheet |
| Extra information | Max. 16A |
| Time setting | 1 - 7 min |
