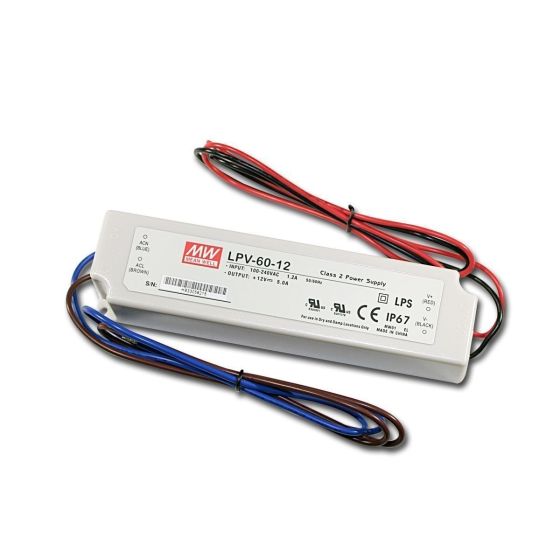

LED DRIVER 60W 12V IP67
MEANWELL
Specifications
| Reference | LPV60-12 |
|---|---|
| Brand | Meanwell |
| Location use | Interior and exterior |
| Fixation location | Ceiling recessed, Technical area, Standalone |
| Application | LEDstrips, Voltage-controlled LEDs |
| Shape | Rectangular |
| Type in brand | Transformers / Power |
| Voltage/current | 12V DC |
| Operating temperature | -30°C to +70℃ |
| IP rating IP stands for "International Potection. The first digit indicates dust density. The second indicates water density. However, if a third digit is included, it refers to the impact resistance or 'I K' value. | IP67 |
| Insulation class | II |
| Dimensions | See technical data sheet |
| Length in mm | 162,5 |
| Width in mm | 42,5 |
| Height in mm | 32 |
| Dimmable With a dimmable lighting fixture, you can control the intensity of the light. Usually this is with an external, NOT included dimmer. When in doubt, inquire. | No |
| More technical details | See technical data sheet |
| Weight in kg | 0,4 |
| Current output | 5 |
| Input voltage (V) | 90-264VAC 127-370VDC |
| Output voltage (V) | 12V DC |
| Transformer suitable for | Direct voltage LED lamps, LED lamps, LED strips |
| Output power (w) | 60W |
| Can trough opening of | 52 |
