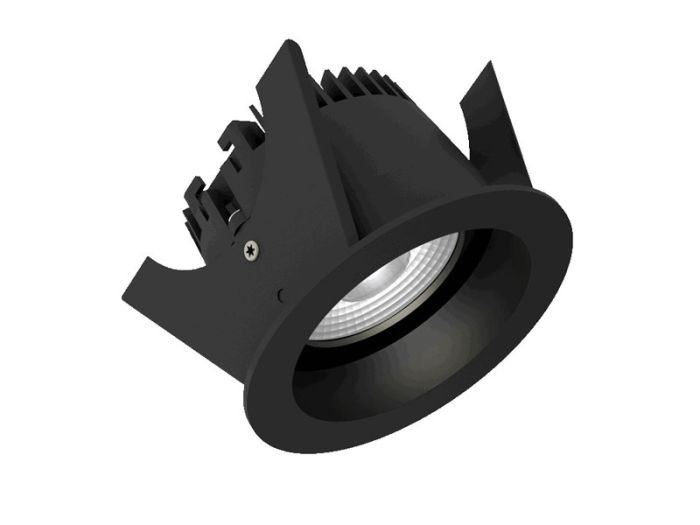

Fluxe 75 HV-FD 800Lm triac cs
ILLUXTRON
Specifications
| Brand | Illuxtron |
|---|---|
| Family | Fluxe |
| Location use | Interior |
| Fixation location | Ceiling recessed |
| Place of application | Ceiling interior recessed |
| Possible setup The space where you can apply the device. | Desk / Office, Entrance / hall, Kitchen, Kids room, Lounge, Bedroom, Shop, Living room |
| Mounting device | Flat spring |
| Shape | Round |
| Type recessed spot | With frame |
| Available colours | White, Black |
| Applied materials These are the visible materials that make up the luminaire. | Die cast aluninium, Polycarbonate |
| Light source included | Yes |
| Type of light source | LED |
| Integrated LED This is a built-in LED module. You cannot replace this yourself however the driver or LED module can be repaired. The device is repaired by the manufacturer. | Yes |
| Number of light sources | 1 |
| Lamp base This is the fitting of the lamp that fits into the device. | Ledmodule |
| Average life span in hrs. | L90B10>70000 |
| Macadam | SDCM: 3 |
| Type of light The type of light indicates the effect of the light source. | Accent direct |
| Type in brand | Spots recessed |
| Colour Rendering Index CRI Colour Rendering Index indicates how correctly a light source reproduces the colours it shines on. The higher the CRI, the more correctly the colours are rendered under the light source. | 93 |
| Voltage/current | 220-240VAC |
| Power factor | 0,99 |
| Operating temperature | -20°C to +45°C |
| Lumen 1st light source The total amount of visible light emitted by a light source. | 800 |
| Insulation class | I |
| Dimensions | See picture |
| Cover size in mm | 90 |
| Mounting depth in mm | 60 |
| Recessed opening shape | Round |
| Installation dimensions in mm | 75 |
| Thickness in mm | 2 |
| Height in mm | 55 |
| Dimmable With a dimmable lighting fixture, you can control the intensity of the light. Usually this is with an external, NOT included dimmer. When in doubt, inquire. | Yes, Triac, forward or reverse phase cut |
| More technical details | See technical data sheet and instructions |
| Weight in kg | 0,322 |
| Warranty | 7 years |
