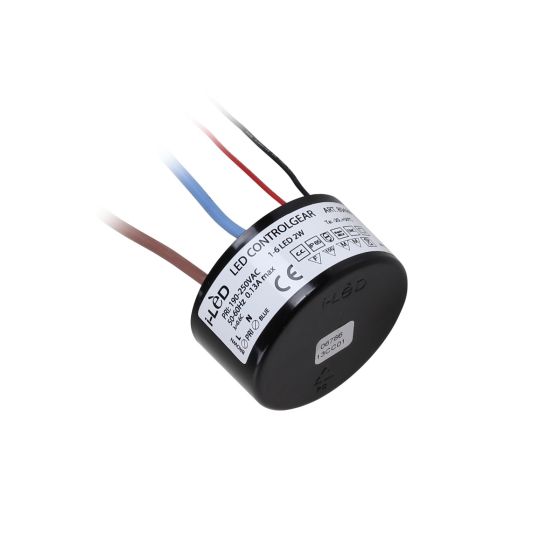

Penny | On/Off Driver 180~300V AC 6-13W 630MA
I-LED
Specifications
| Part number | 8056534752399 |
|---|---|
| Reference | 99175 |
| Brand | I-Led |
| Location use | Interior and exterior |
| Application | Power-controlled LEDs |
| Shape | Round |
| Colour This is the colour of which the device is mainly composed. | Black |
| Type in brand | Transformers / Power |
| Power factor | 0,96 |
| Operating temperature | -20°C to +50°C |
| IP rating IP stands for "International Potection. The first digit indicates dust density. The second indicates water density. However, if a third digit is included, it refers to the impact resistance or 'I K' value. | IP65 |
| Insulation class | II |
| Dimensions | See picture |
| Height in mm | 27,5 |
| Diameter in mm | 54,5 |
| More technical details | See technical data sheet |
| Weight in kg | 0,106 |
| Forward voltage at 630 mA | 9-20 |
| Power at 630 mA (watt) | 6-13 |
| Current output | 0,63 |
| Input voltage (V) | 198-264V |
| Transformer suitable for | Power-controlled LED lamps |
| Min.-max power (watt) | 6-13 |
| Can trough opening of | 55 |
