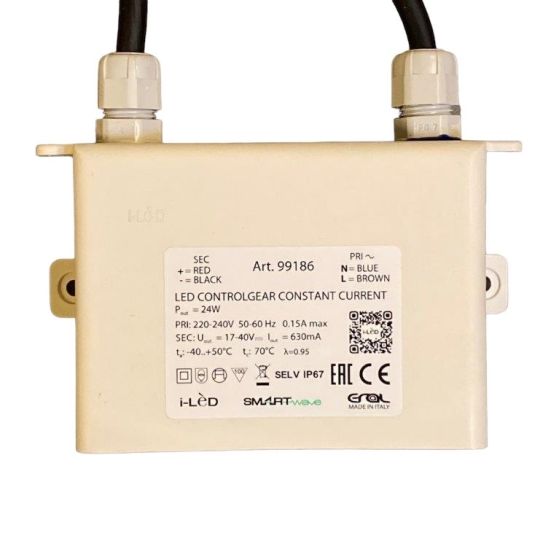

Maxi Aqualed NO DIM Driver 20W DC 630mA 39V 6-12LEDS 12-24W
I-LED
Specifications
| Part number | 8056534752467 |
|---|---|
| Reference | 99186 |
| Brand | I-Led |
| Location use | Interior and exterior |
| Application | Power-controlled LEDs |
| Shape | Rectangular |
| Colour This is the colour of which the device is mainly composed. | Beige |
| Type in brand | Transformers / Power |
| Power factor | >0,95 |
| Operating temperature | -40°C to +50°C |
| IP rating IP stands for "International Potection. The first digit indicates dust density. The second indicates water density. However, if a third digit is included, it refers to the impact resistance or 'I K' value. | IP67 |
| Insulation class | II |
| Dimensions | See picture |
| Thickness in mm | 92 |
| Length in mm | 117 |
| Width in mm | 38 |
| Height in mm | 92 |
| Dimmable With a dimmable lighting fixture, you can control the intensity of the light. Usually this is with an external, NOT included dimmer. When in doubt, inquire. | No |
| More technical details | See catalogue page |
| Forward voltage at 630 mA | 19-38 |
| Power at 630 mA (watt) | 12-24 |
| Current output | 0,63 |
| Input voltage (V) | 198-264V |
| Transformer suitable for | Power-controlled LED lamps |
| Min.-max power (watt) | 12-24 |
| Can trough opening of | 124 |
