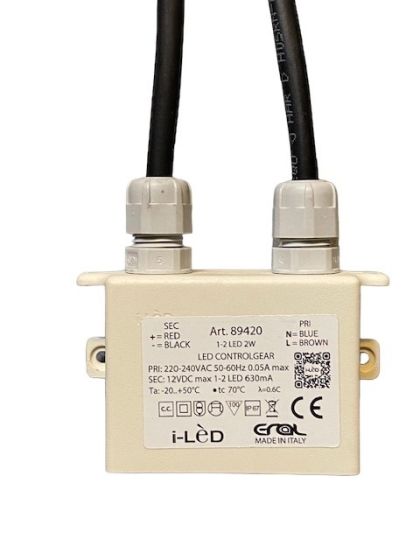

Controlgear 1-2leds 2W 630mA IP67
I-LED
Specifications
| Part number | 8033913594252 |
|---|---|
| Reference | 89420 |
| Brand | I-Led |
| Location use | Interior and exterior |
| Application | Power-controlled LEDs |
| Shape | Rectangular |
| Colour This is the colour of which the device is mainly composed. | White |
| Type in brand | Transformers / Power |
| Power factor | >0,6 |
| Operating temperature | -40°C to +50°C |
| IP rating IP stands for "International Potection. The first digit indicates dust density. The second indicates water density. However, if a third digit is included, it refers to the impact resistance or 'I K' value. | IP67 |
| Insulation class | II |
| Length in mm | 74 |
| Width in mm | 27 |
| Height in mm | 65 |
| More technical details | See technical data sheet |
| Forward voltage at 630 mA | 3-6 |
| Power at 630 mA (watt) | 2-4 |
| Current output | 0,63 |
| Input voltage (V) | 190-250VAC |
| Transformer suitable for | Power-controlled LED lamps |
| Min.-max power (watt) | 2-4 |
